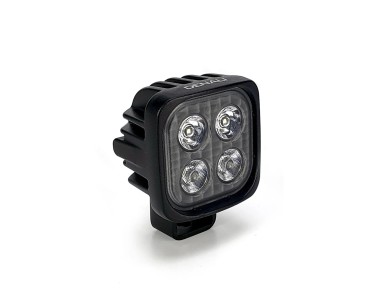

The S4 is the first light we developed as part of our new S-Series product line. At over 3000 lumens, the S4 provides more light per dollar than just about anything else on the market. The new S-Series lights were specifically engineered to reduce cost without sacrificing performance, quality or durability. In fact, the S4 features the same high intensity LEDs as the D-Series lights, but utilize a single-piece optic and sealed beam construction to reduce the number of unique components. The result is a super durable high performing light that won't break the bank. The fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing.

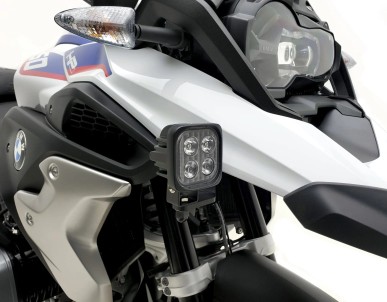

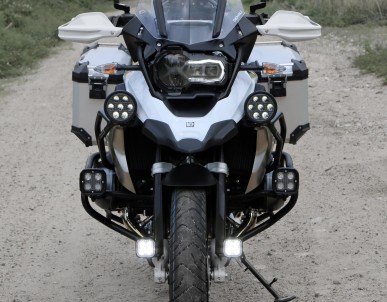

The super versatile hybrid lens and compact size make the S4 our go-to driving light for mid-sized motorcycles, roof/cargo lights for Side by Sides, and backup lights on Jeeps and trucks.

Consistent with D-Series lights, the S4 features DENALI’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller (DENDNL.WHS.11000) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

S4 Light Pod Features

• High-Intensity Series Cree LEDs outputting 6132 lumens per pair
• Sealed beam lens increases durability and reduces cost without affecting light output
• DataDim™ equipped light pods enable plug and play connection, and integrated dimming, with DENALI dimming and lighting controllers.
• DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminium bezels
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

S4 Pod Specs (pair)

• LED’s: (8x) 7 Watt Cree XPL HI
• Power Draw: 4.6 Amps

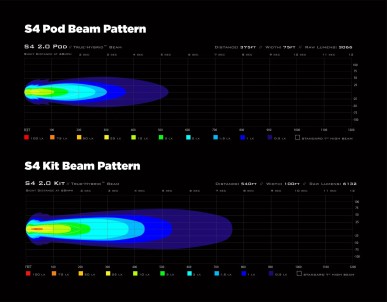

• Beam Distance: 540 Feet
• Beam Width: 100 Feet
• Raw Lumens: 6132
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC

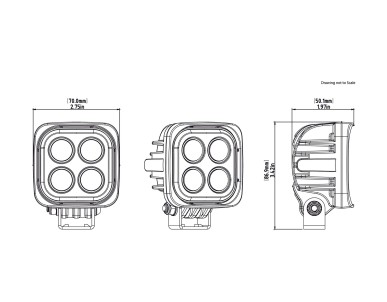

• Pod Size: 2.75” Square x 1.97” Deep (each)
• Pod Weight: 0.8 lbs (each)
• IP67 Waterproof & Submersible

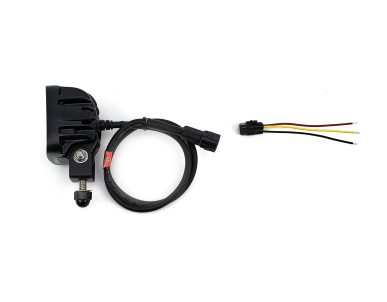

S4 Light Pod Box Contents - DNL.S4.050

(1x) LED Light Pod

(1x) Hybrid Lens (Installed)

(1x) M8 Mounting Hinge with Stainless Steel Mounting Hardware

(1x) Wiring Pigtail
