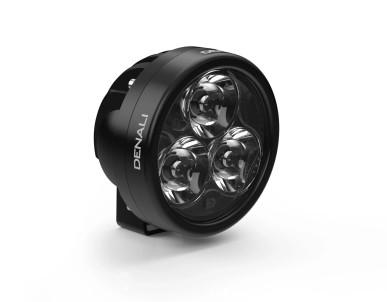

New D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. The D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors' lights that are twice its size.

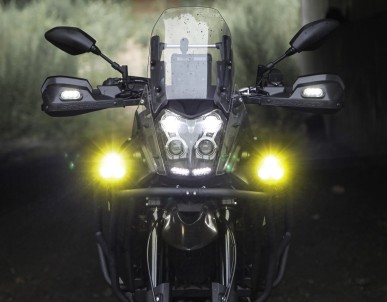

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

The Denali D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off".

Features

• TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
• Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2100 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

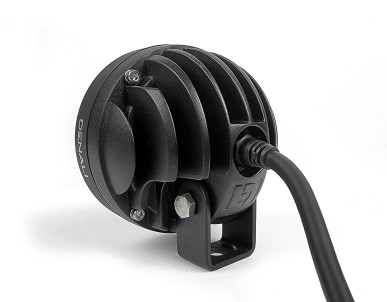

• Low profile mounting bracket with stainless steel hardware included
• Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
• Amber & Selective Yellow lenses available

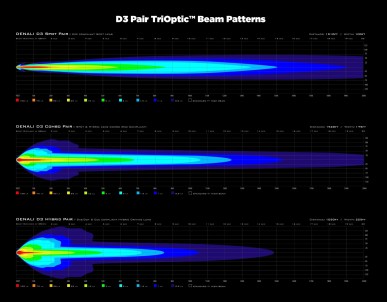

Beam Performance (pair)

Spot Beam

Beam Distance (at 1 lux): 1910 feet (582 meters)

Beam Width (at 1 lux): 100 feet (30 meters)

Combo Beam (1 spot, 1 hybrid)

Beam Distance (at 1 lux): 1520 feet (463 meters)

Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam

Beam Distance (at 1 lux): 1050 feet (320 meters)

Beam Width (at 1 lux): 225 feet (69 meters)

Specs (single pod)

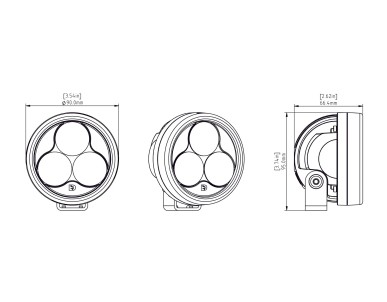

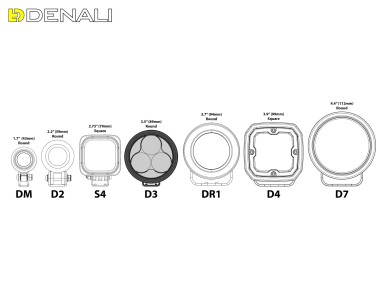

• Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
• LED: (3x) 11 Watt Cree XP-P LEDs
• Power Draw: 36 Watts (3 Amps)
• Lumens: 2100
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
• Spot Lens Certifications: ECE R112

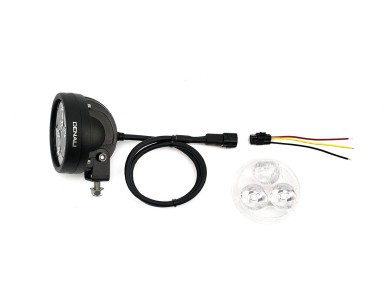

Light Pod Box Contents - DENDNL.D3.050

(1x) D3 LED Light Pod (spot lens installed)

(1x) D3 Hybrid Lens

(1x) Hinge Mounts with M8 Stainless Steel Hardware

(1x) Wiring Pigtail
